Description

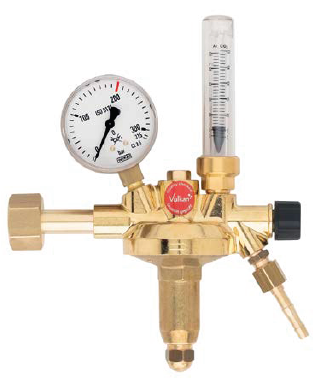

The Vulkan F 10/300 F Effect combines the F 10/300 Effect pressure regulator with an integrated flowmeter. The operator sets the required gas flow in Nl/min at a constant working pressure — directly relevant for MIG/MAG welding where precise, repeatable shielding gas flow affects weld quality.
The Vulkan Effect ensures the working pressure remains constant as the cylinder depletes, keeping the set flow accurate throughout the working cycle. Without this, rising working pressure as the cylinder empties would increase actual flow above the set value, wasting shielding gas.
The F-series is available with factory-fitted inlet connections for any national or international cylinder valve standard — covering Europe (DIN 477, AFNOR, UNI, NEN, SMS), North and South America (CGA, ABNT, IRAM), UK and Commonwealth (BS 341, AS 2473) and specialty standards (ISO 5145, NPT, BSPP). Every connection is pressure-tested at the factory. This eliminates the need for third-party adapters and ensures the complete assembled unit complies with ISO 2503 from cylinder valve to outlet. A full reference table of available connections and article numbers is provided in Table 3.
Key Advantages
- Integrated flowmeter for precise Nl/min flow setting — critical for shielding gas quality control.
- Vulkan Effect keeps working pressure and set flow constant as the cylinder depletes.
- Multiple flow ranges for CO₂/argon, nitrogen, hydrogen and forming gas.
- Available for 200 bar and 300 bar inlet cylinders.
- Factory-fitted international connections — no adapters required.
Food-Gas / Compliance Positioning
This regulator can be positioned for food-gas projects when ordered with the appropriate wetted materials, elastomers, cleanliness level and documentation package. Regulation (EC) No 1935/2004 defines the basic requirement that materials in contact with food must not transfer substances in quantities that could endanger health or unacceptably change the composition or organoleptic properties of food. Regulation (EC) No 2023/2006 adds GMP requirements for controlled manufacturing processes. In Germany, LFGB is part of the legal framework used for control of food-contact materials and articles.
Table 1. Technical Data
| Parameter | Value |
| Body | Brass |
| Seals | Polyamide, EPDM |
| Diaphragm | EPDM |
| Leakage rate | 1 × 10⁻⁶ mbar l/s |
| Temperature | -20 to +60 °C |
| Max. inlet pressure | 200 / 300 bar |
| Working pressure | 2.5 or 4.5 bar (flow range dependent) |
| Width (B) | 210 mm |
| Height (H) | 230 mm |
| Depth (T) | 75 mm |
| Weight (M) | 1.5 kg |
Table 2. Versions and Article Numbers
| Gas type | Inlet / Flow range | Pressure | Inlet | Outlet | Art. no. |
| CO₂/Argon | 200 bar 0.5–5.0 Nl/min. | 4.5 bar | W21.8×1/14RH nut | G 1/4 RH×6 mm | 226 711 |
| CO₂/Argon | 200 bar 1.0–15.0 Nl/min. | 2.5 bar | “ | “ | 226 700 |
| CO₂/Argon | 200 bar 3.0–30.0 Nl/min. | 2.5 bar | “ | “ | 226 702 |
| Nitrogen | 200 bar 5.0–50.0 Nl/min. | 4.5 bar | W24.32×1/14RH nut | “ | 223 712 |
| Hydrogen | 200 bar 3.0–34.0 Nl/min. | 4.5 bar | W21.8×1/14LH nut | G 3/8 LH×9 mm | 224 706 |
| Forming gas | 200 bar 3.0–34.0 Nl/min. | 2.5 bar | “ | “ | 224 710 |
| CO₂/Argon | 300 bar 0.5–5.0 Nl/min. | 4.5 bar | W 30×2RH nut | G 1/4 RH×6 mm | 326 711 |
| CO₂/Argon | 300 bar 1.0–15.0 Nl/min. | 2.5 bar | “ | “ | 326 700 |
| CO₂/Argon | 300 bar 3.0–30.0 Nl/min. | 2.5 bar | “ | “ | 326 702 |
| Nitrogen | 300 bar 5.0–50.0 Nl/min. | 4.5 bar | “ | “ | 323 712 |
| Hydrogen | 300 bar 3.0–34.0 Nl/min. | 4.5 bar | W 30×2LH nut | G 3/8 LH×9 mm | 324 706 |
| Forming gas | 300 bar 3.0–34.0 Nl/min. | 2.5 bar | “ | “ | 324 710 |
Table 3. International Cylinder Connections
Every Vulkan F-series regulator can be supplied with factory-fitted inlet connections matching any national or international cylinder valve standard. Factory fitting eliminates the need for third-party adapters — every connection is pressure-tested at the factory, ensuring leak-proof performance and full compliance with ISO 2503 for the complete assembled unit. Connection-specific materials and seals are selected according to the gas type and standard requirements. The result is a regulator ready for immediate integration with the local cylinder fleet — without additional site adaptation.
CO₂ / Argon — international cylinder connections:
| Region / Country | Standard | VDMA no. | Connection type | Article no. |
| Australia | AS2473, Type 30 | 4.1 | nut 0.860×1/14 RHf | 912 401 |
| Germany, Belgium, Finland, Austria, Poland, CH | DIN 477-1, No. 6 | 4.2 | nut W21.8×1/14 RHf | 912 402 |
| France, Spain, Portugal, Greece, N. Africa (also Ar, N₂) | NFE29650 Type C | 4.3 | nut W21.7×1/14 RHk/f | 912 403 |
| UK, Egypt, Asia, S. Africa, Arabia | BS341-3, No. 8 | 4.4 | nut 0.860×1/14 RHf | 912 404 |
| Belgium, Netherlands | NEN RU1 | 4.5 | nut W21.8×1/14 RHf | 912 405 |
| USA, South America | CGA 320 | 4.6 | nut 0.830×1/14 RHf | 912 406 |
| Switzerland | SN 219 505 Bl.7 | 4.7 | nut W21.8×1/14 RHf | 912 407 |
Nitrogen — international cylinder connections:
| Region / Country | Standard | VDMA no. | Connection type | Article no. |
| Denmark, Norway | DS727.3 | 5.1 | nut W24.32×1/14 RHf | 912 501 |
| Netherlands, Sweden | NEN RU3 | 5.3 | nut W24.32×1/14 RHf | 912 503 |
| Sweden | SS2238, Type A | 5.4 | nut W24.32×1/14 RHf | 912 504 |
| USA, South America | CGA 580 | 5.5 | AG 0.960×1/14 RHk | 912 505 |
| Germany, Finland, Austria, Poland, CH, SK, CZ | DIN 477-1, No. 10 | 7.1 | nut W24.32×1/14 RHf | 912 701 |
| Italy | UNI 4409 | 7.2 | AG W21.7×1/14 RHf | 912 702 |
Hydrogen — international cylinder connections:
| Region / Country | Standard | VDMA no. | Connection type | Article no. |
| Germany, Finland, Norway, Austria, Poland, Sweden, CH, SK, CZ | DIN 477-1, No. 1 | 3.1 | nut W21.8×1/14 LHf | 912 301 |
| France, Spain, Portugal, Greece, N. Africa | NFE29650 Type E | 3.2 | nut W21.7×1/14 LHk | 912 302 |
| UK, Egypt, Asia, S. Africa, Arabia | BS341-3, No. 4 | 3.3 | AG G5/8A-LHk | 912 303 |
| Italy | UNI 4405 | 3.5 | nut W20×1/14 LHf | 912 305 |
| Netherlands | NEN LU1 | 3.6 | nut W21.8×1/14 LHf | 912 306 |
| Denmark | DS727.1 | 6.1 | nut W21.8×1/14 LHf | 912 601 |
| USA, South America | CGA 350 | 6.4 | nut 0.830×1/14 RHk | 912 604 |
